**Please keep in mind that not all clamps have the screws to receive a bracket such as this in the same place. This means it may not fit a clamp you have purchased elsewhere. That said, new holes can simply be drilled to accomodate the measurements (outlined below).

This double drip tray holder attaches on to a clamp/other surface via two screws (usually supplied with a clamp). The measurements are as follows:

• 230mm in length
• 165mm in width
• 355mm diagonal
• It is 160mm from one side to centre, and 220mm (diagonally) from corner to corner on each side.
• The screw holes are 12mm in diameter.
• 150mm from edge of tray to centre of hole
• 30mm between each hole (centre to centre)

Drip tray measurements:

• 168mm length external (from outside lip)
• 148mm length internal (inside lip/size of lid)
• 235mm external diagonal
• 190mm internal diagonal

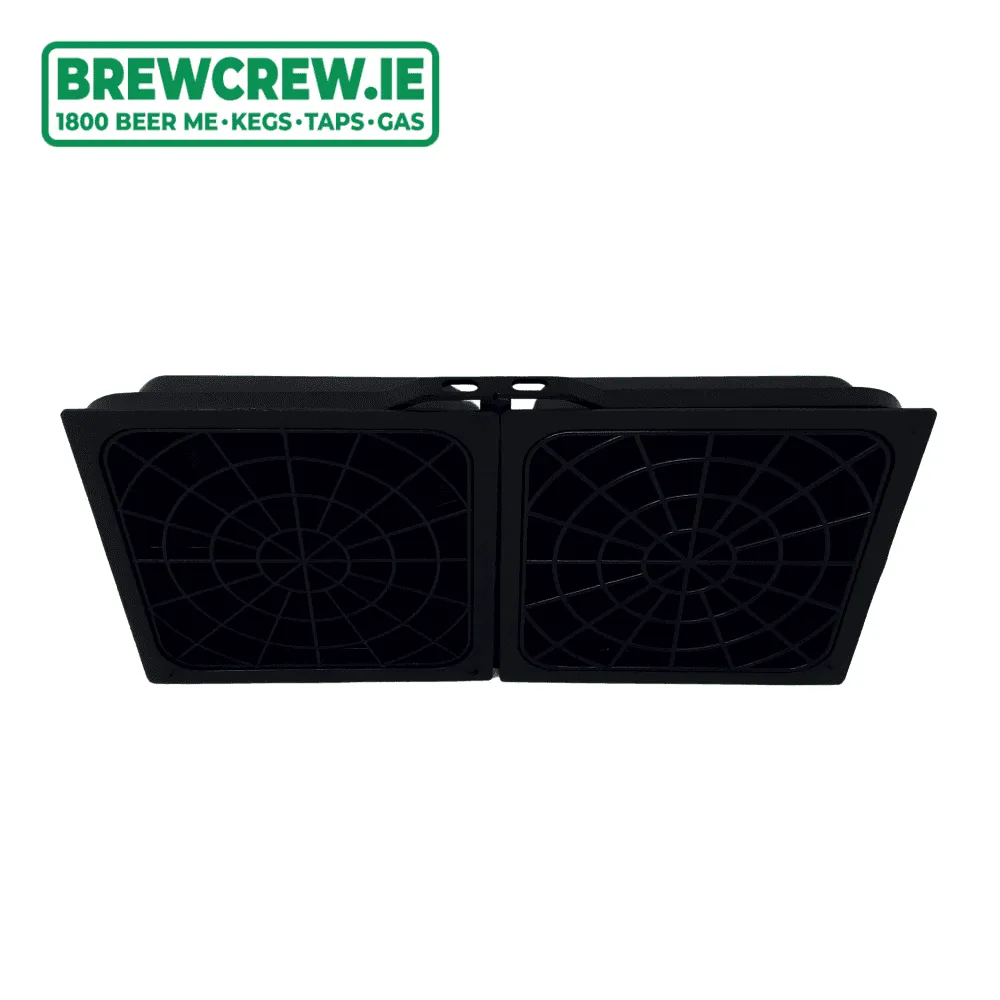

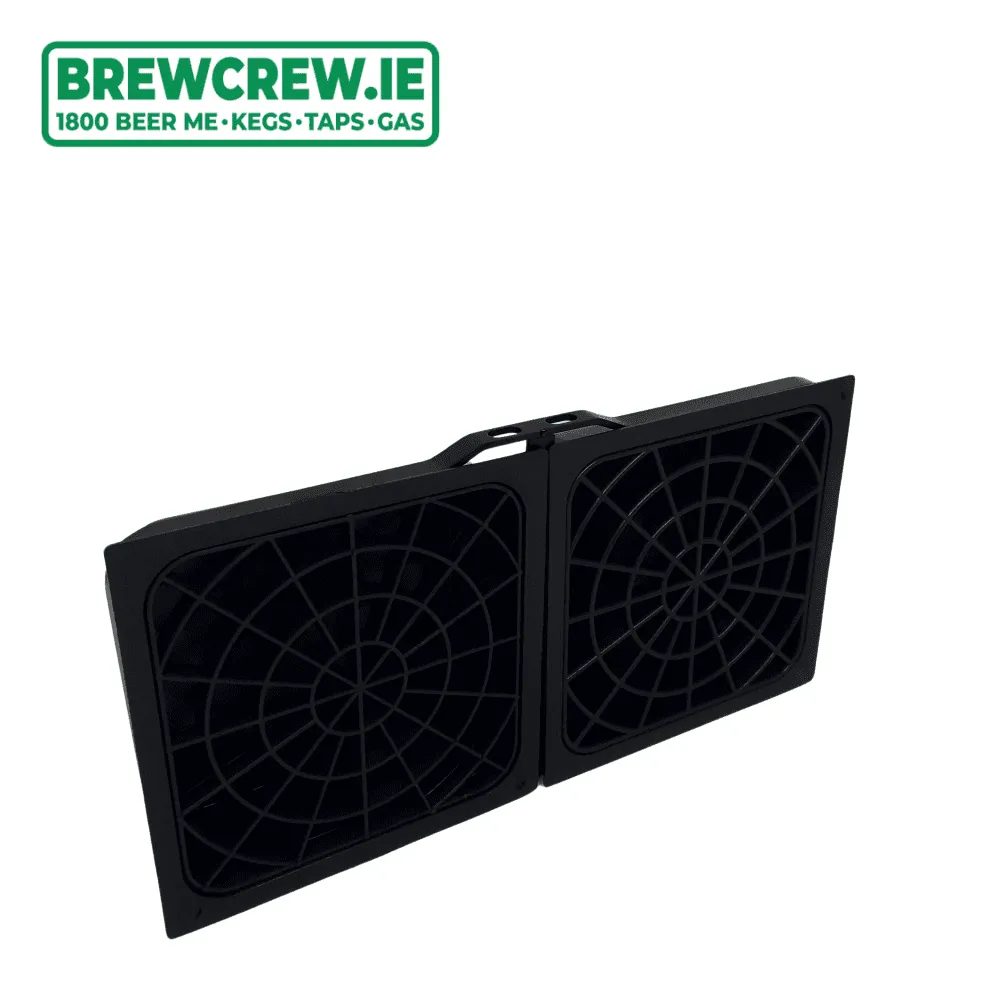

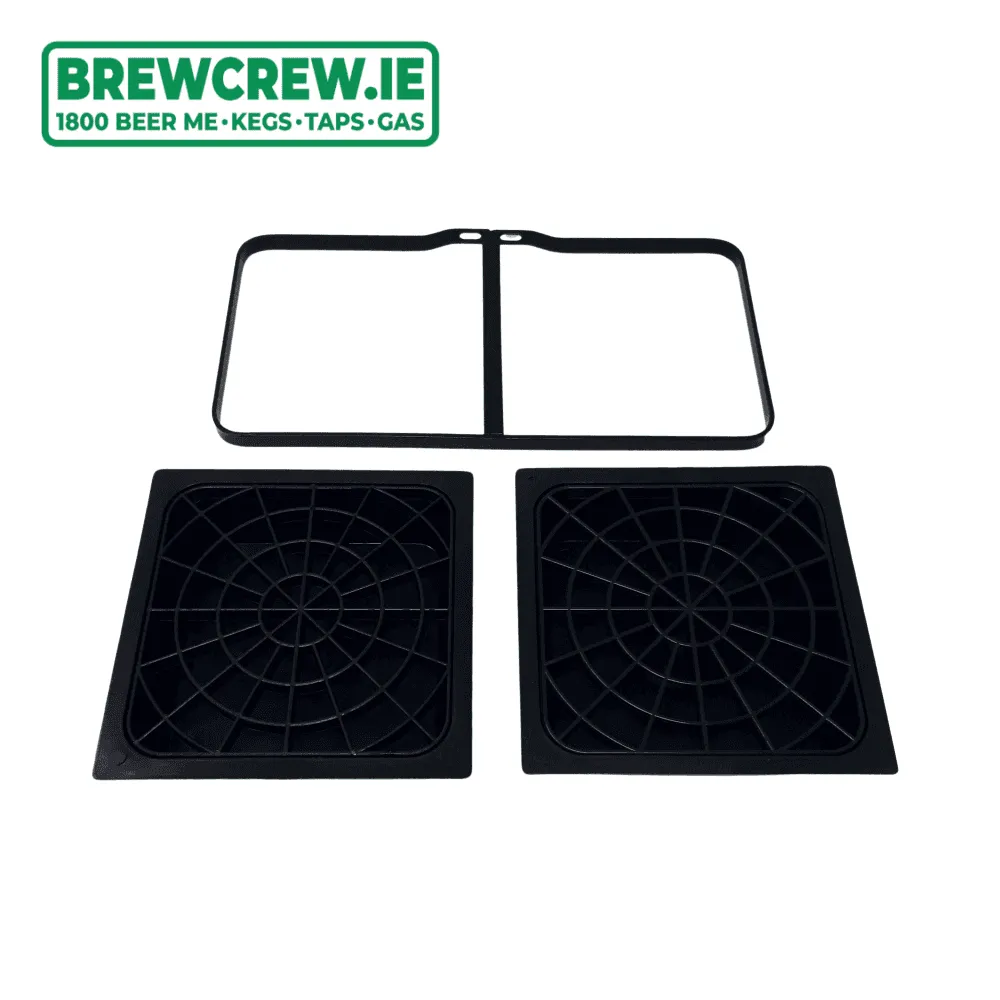

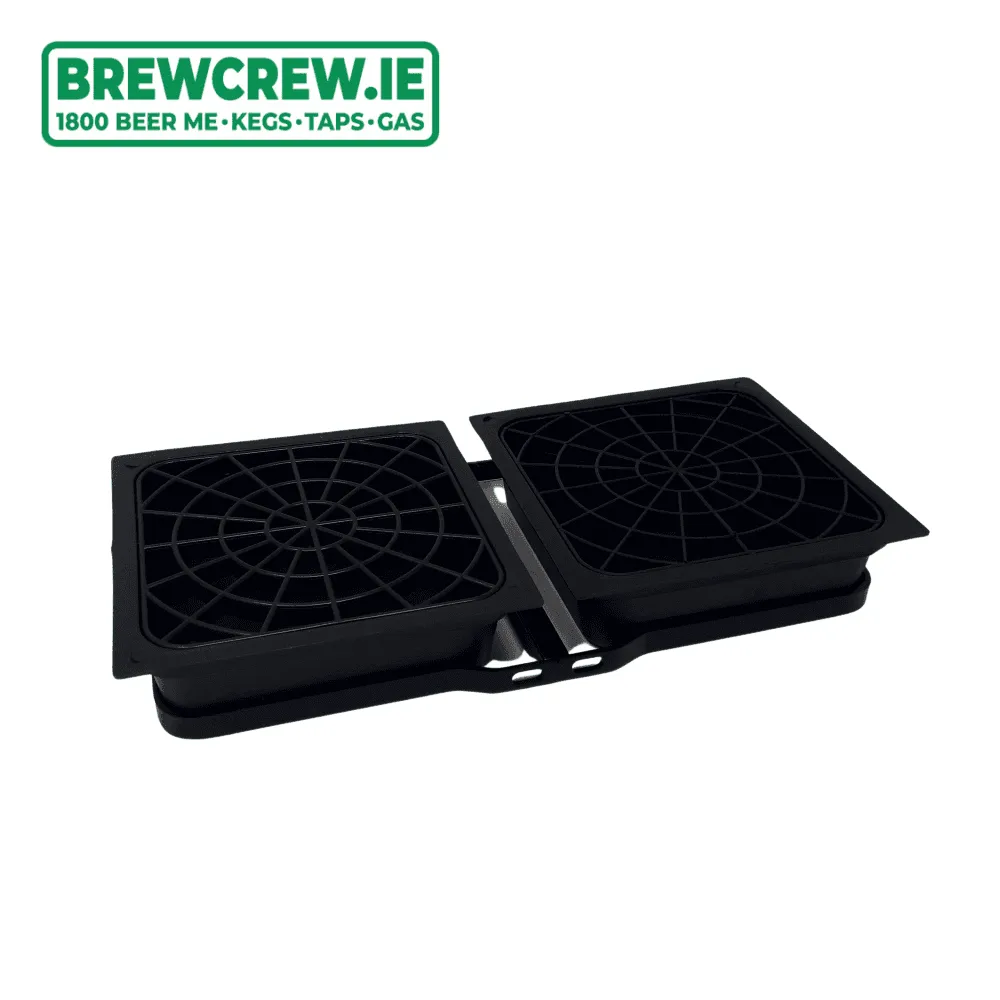

The two drip trays sit neatly into the bracket.
